Industrial Wireless Client 5 Gigabit Ethernet Ports | WiFi Roaming | Edge Computing | CAN FD Gateway The USR-W650 is a WIFI wireless client with high speed, wide connectivity, low latency and high stability. It features a rich set of hardware interfaces: integrating 1*CAN, 1*RS232, 1*RS485, 5* Ethernet port (4*LAN + 1*WAN/LAN) and 2.4G&5.8G dual band WiFi. This product adopts industrial-grade standards, supports wide temperature and voltage ranges, offers robust hardware protection, and has passed multiple stringent environmental tests.
Key Features
  • Fast WiFi Roaming: Fast WiFi handover within 100ms
  • Qualcomm WiFi 5: Dual-Band WiFi with strong anti-interference & wide coverage
  • Gigabit Ethernet: 1WAN+4LAN
  • Industrial Design: Super EMC protection & Operating temperature -40℃ to 75℃ & Aluminum housing for heat dissipation
  • Edge Computing: Multi-Point Polling, Parsing & Computation, RS232/RS485 Serial Ports
  • PUSR Cloud: Remote Mornitering & Maintenance, Anomaly Alerting

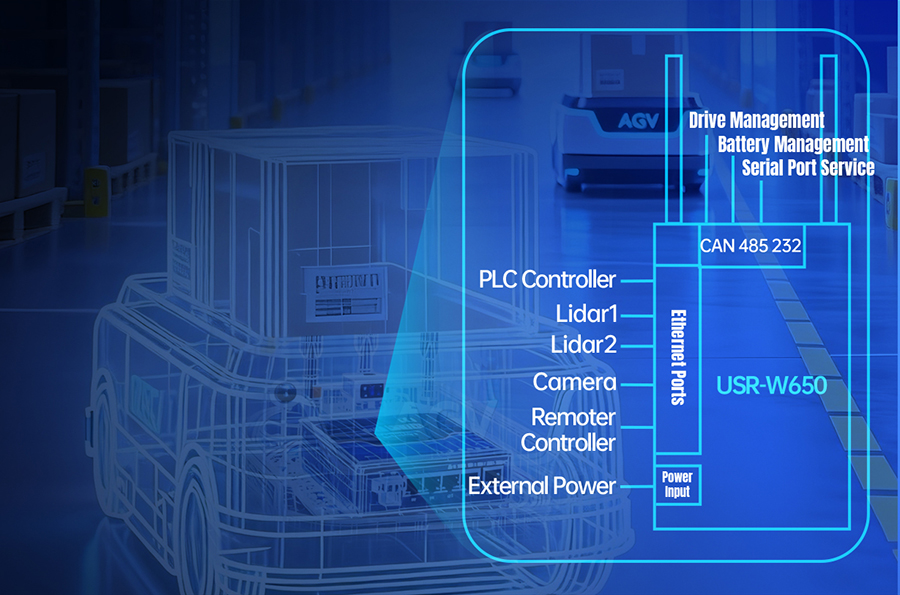

High-Efficiency Integration, Simplified Deployment USR-W650 integrates switch, CAN protocol converter, and serial server functions, saving space and reducing costs for robotics and the AGVs (Automated Guided Vehicle) market.

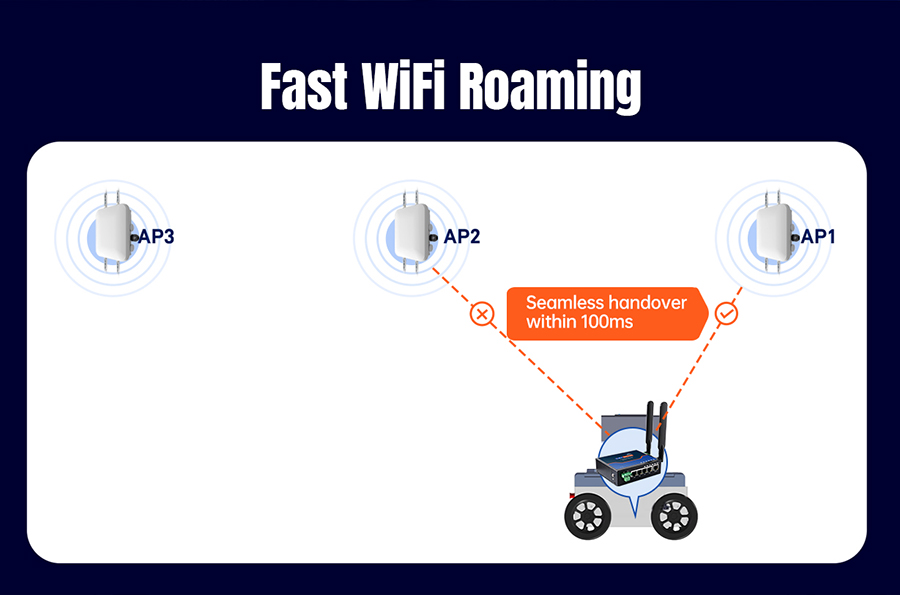

Fast WiFi Roaming USR-W650 supports dual-band (2.4GHz/5.8GHz) operation, ensuring reliable communication for mobile devices. Seamless handover within 100ms, easily meeting the needs of AGVs, transport robots, and commercial service robots in mobile scenarios.

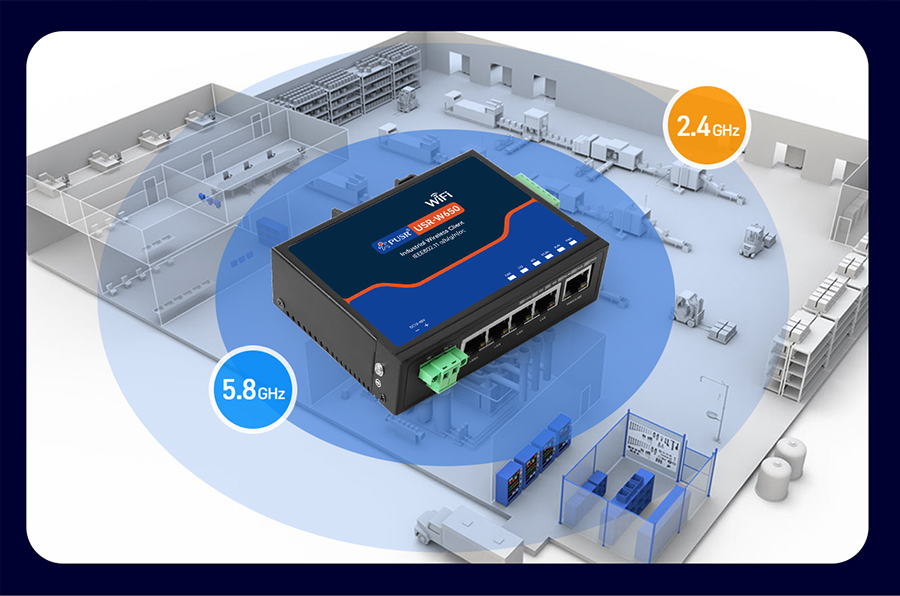

High-Speed Networking USR-W650 supports dual-band (2.4GHz/5.8GHz) operation, ensuring reliable communication for mobile devices. Seamless handover within 100ms, easily meeting the needs of AGVs, transport robots, and commercial service robots in mobile scenarios.
Wi-Fi Signal Detection & Site Deployment Assistance USR-W650 supports on-site Wi-Fi environment surveying, roaming signal testing, and wireless link testing. Clearly displays wireless network status, helping optimize equipment placement and ensuring stable, reliable wireless communication.
CAN FD Protocol Conversion
  • Supports CAN FD to Ethernet/Wi-Fi transmission
  • Supports CAN FD to Modbus RTU/TCP gateway

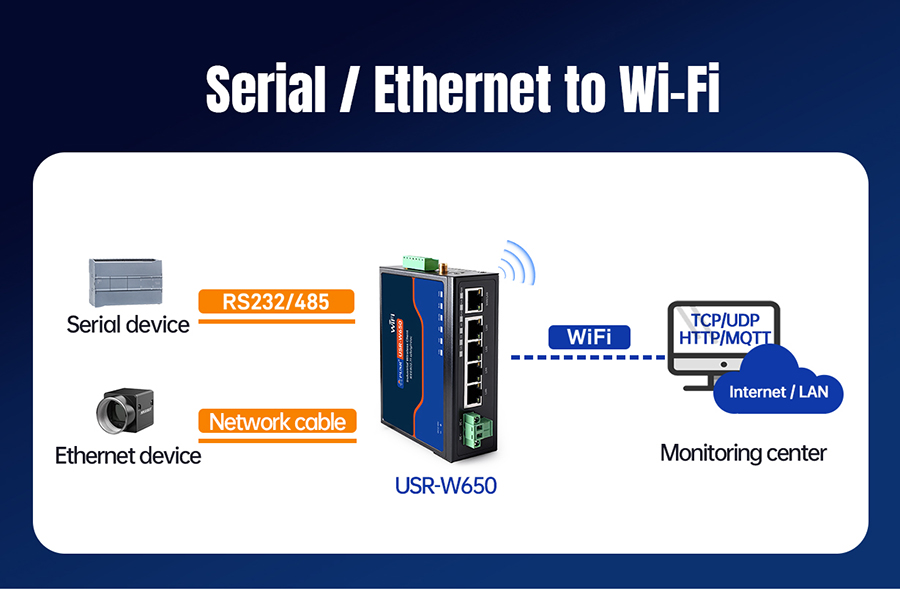

Serial/Ethernet to Wi-Fi USR-W650 offers three wireless modes: AP, STA, and AP+STA, flexibly adapting to various network environments. Enables flexible bidirectional conversion between serial, Wi-Fi, and Ethernet ports, making industrial connectivity simpler and more reliable.
Edge Computing,Enabling Edge Device Connectivity
In The IIOT Era Standard MQTT protocol, fast access To mainstream cloud platforms and private MQTT servers.

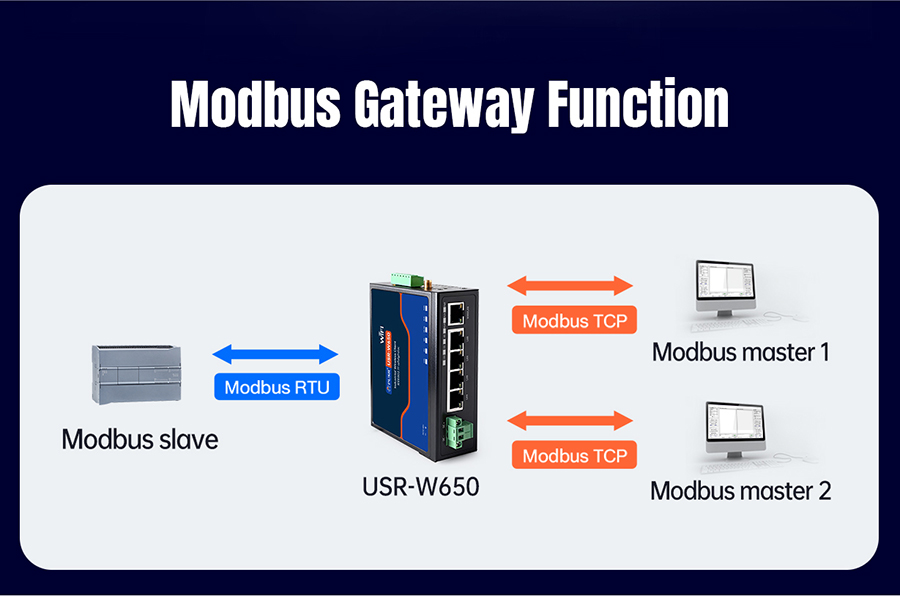

Modbus Gateway Function
  • Multi-Host Modbus Polling
  • Modbus RTU to Modbus TCP
Remote Management, Anytime, Anywhere Cooperates with PUSR platform, users can realize remote login configuration webpage, data debugging and remote firmware upgrade functions. Users can also monitor the online/offline record of the device. With all the above functions, users can monitor and manage the device conveniently.
Industrial Design
  • EFT Protection: Level 3. Protect device against damage caused by instantaneous current interference in circuit, such as lightning stroke, power switch, etc.
  • ESD Protection: Level 4. Prevent electrostatic damage equipment, such as dust electrostatic, electric arc environment etc.
  • Surge Protection: Level 3. Protect devices from voltage spikessuch as lightning stroke, power switch, etc.
  • Watchdog: Hardware & software dual watchdog to ensure stable operation without downtime.
  • Wide Operation Temperature: -40℃~ 75℃.
  • Wide Power Input: 12~48V, reverse polarity protection.
  • Metal housing, IP30 protection.

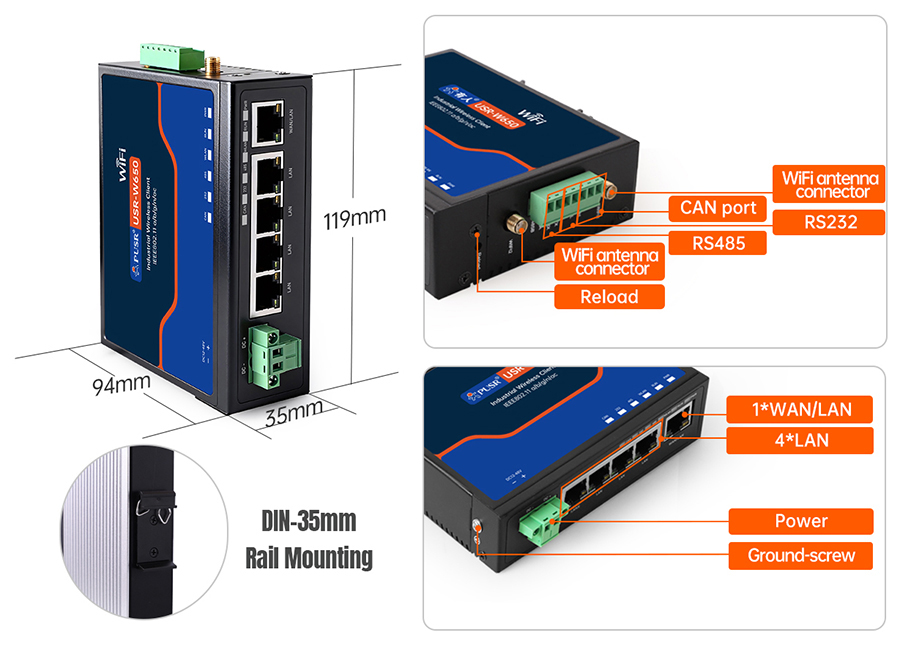

Dimension & Details

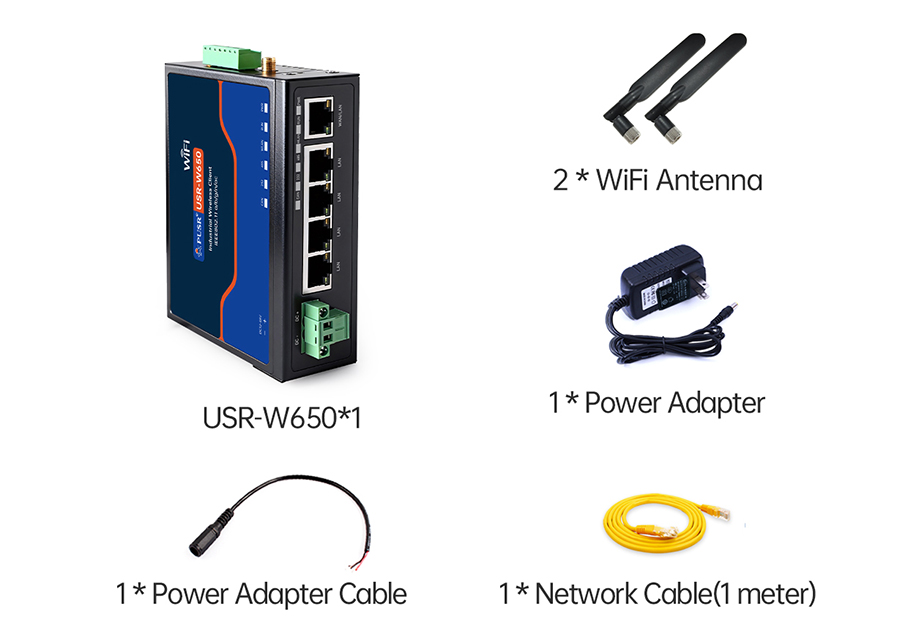

Shipping List
  • 2 * WiFi Antenna
  • 1 * Power Adapter
  • 1 * Network cable(1 meter)
  • 1 * Power cable
Application of Mobile Device Networking The USR-W650 is specifically designed for mobile scenarios such as warehousing and logistics, transport robots, and industrial automation. It supports the connection of a large number of terminals, delivers high-bandwidth and low-latency stable connectivity, and enables fast seamless roaming. It is an ideal solution for reliable data transmission and centralized management of mobile devices.

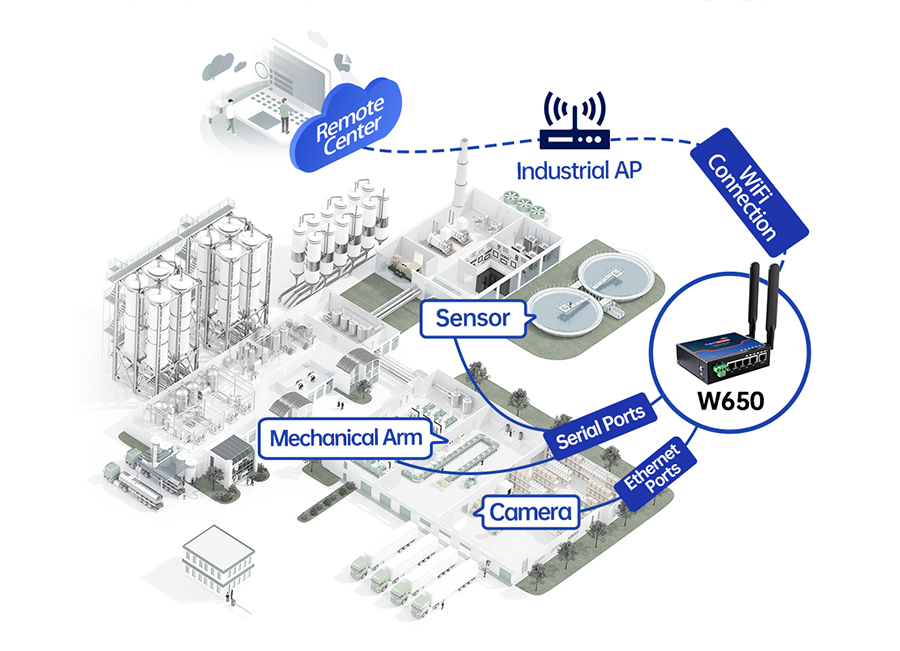

Data Collection and Management for Factory Equipment The USR-W650 connects to factory equipment via serial port, Ethernet, and WiFi links, transmitting operational data in real time to a remote management platform. This effectively improves production process controllability, enables timely and accurate equipment data collection, reduces production and maintenance costs, and supports the intelligent transformation of traditional industry.
